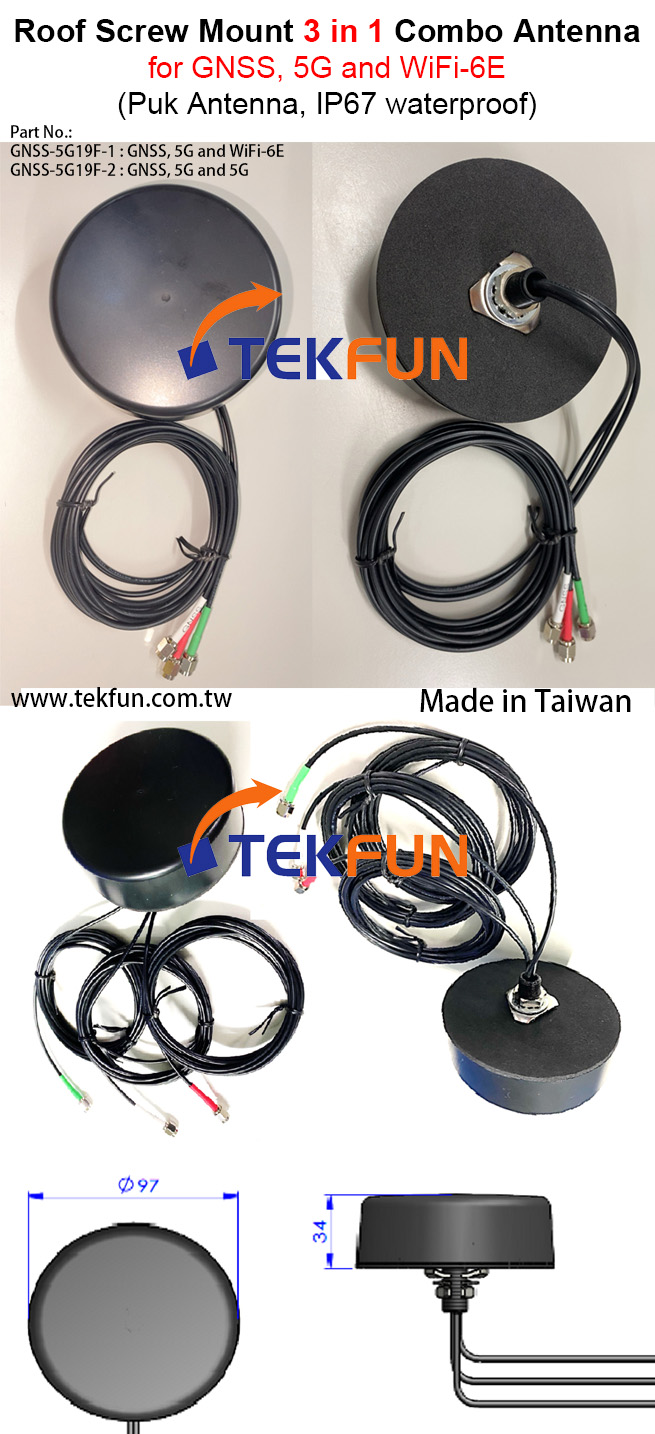

Roof Screw Mount 3 in 1 Combo Antenna for GNSS, 5G LTE and WiFi-6E (Puck Antenna Through-Hole Mount), IP67 waterproof

Roof Screw Mount 3 in 1 Combo Antenna for GNSS, 5G LTE and WiFi-6E (Puck Antenna Through-Hole Mount), IP67 waterproof

Availability： In stock

Model number： GNSS-5G19F

Part no.

Size(mm)

Frequency

GNSS-5G19F-1
3in1
GNSS+5G+WIFI-6E

OD97x H34mm

GPS/Glonass(GNSS) x 1 1575.42~1615MHz

5G (Sub-6G) x 1 600~5925MHz

WiFi-6E x 1 2400/5150~7125MHz

GNSS-5G19F-2
3in1
GNSS+5G+5G

 OD97x H34mm

GPS/Glonass(GNSS) x 1 1575.42~1615MHz

5G (Sub-6G) x 2 600~5925MHz

SW-73F
2in1
5G+WIFI-6E		 OD97x H34mm

5G (Sub-6G) x 1 600~5925MHz

WiFi-6E x 1 2400/5150~7125MHz

Inquiry
Quantity
    Share

    Electrical:

    • Type: Screw Mount【Car Roof】/ Through-Hole Mount
    • Frequency 3in1: GNSS-5G19F-1 (GNSS+5G+WIFI-6E)

      1x GPS/Glonass(GNSS): 1575.42~1615MHz
      1x 5G (Sub-6G):  600~5925MHz
      1x WiFi-6E:   2400/5150~7125MHz

      Frequency 3in1: GNSS-5G19F-2 (GNSS+5G+5G)

      1x GPS/Glonass(GNSS): 1575.42~1615MHz
      2x 5G (Sub-6G):  600~5925MHz

      Frequency 2in1: SW-73F (5G+ WiFi-6E)
      1x 5G (Sub-6G):  600~5925MHz
      1x WiFi-6E:   2400/5150~7125MHz

    • VSWR: ≤2.0
    • Impedance: 50ohm
    • Gain: 3~5dBi for 5G and Wifi-6E, 28dBi for GNSS
    • Radiation: Omni
    • Polarization: Linear (V or H)
    • Max Power: 30W

    Mechanical:

    • Antenna height: OD97 x H34mm
    • Operating temp.: -20 to +75 degree
    • Storage temp.: -20 to +75 degree
    • Waterproof: IP67
    • Anti-UV antenna cover (ABS)

    Mounting

    • Screw + EVA Foam Tape

    Pigtail Cable and connector:

    • Cable: RG174 x 3cables   (customized cable length)
    • Connector: SMA/M *3  (optional / or RP-SMA/M / or others)
    • Or cutting open end

    Made in Taiwan

    OEM and ODM orders are welcome

    Compliant with RoHS Directive
