Electrical:

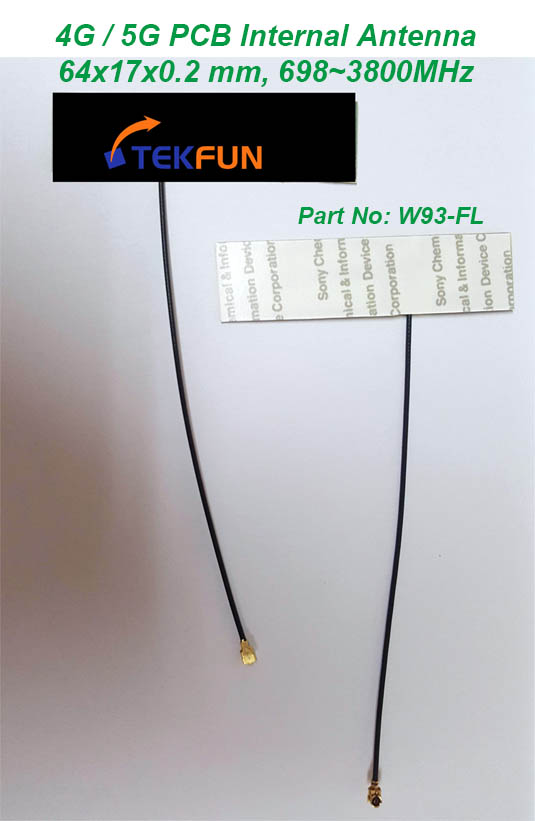

• Type: PCB antenna
• Frequency: 698-960/1710-2170/2300-2400-2690/3300~3800MHz
• VSWR: ≤2.5
• Impedance: 50ohms
• Gain: 1-3dBi
• Radiation: Omni-directional
• Polarization: Linear
• Electrical wave: 1/2
• Max Power: 2W

Mechanical:

• Antenna Size: 64 x 17 x 0.2mm
• Operating temp.: -30 to +75 degree
• Storage temp.: -40 to +85 degree
• Materials: FR4 0.2T PCB
• Color: Black

Mounting:

• with cable and connector

Pigtail Cable and connector:

• Available cable: RG178, OD1.13, OD0.81,OD1.32, OD1.37...etc
• Connector: iPex, murata, MMCX, MCX, SMA...etc
• Or Soldering OPEN end

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
