Electrical:

• Frequency Range:  5GHz (5125MHz - 5875MHz)
• V.S.W.R (MAX): <2.0
• Radiation:  Directional
• Gain (MAX): 22dBi +/-1dB
• Impedance:  50Ohm
• Polarization: Dual Linear; V&H
• Maximum Power:  <30w
• 3dB Beamwidth(H-Plane): 9°
• 3dB Beamwidth(E-Plane): 9°
• Front to Back Ratio: >25dB
• Isolation (Port to Port): >25dB typical
• Input Power, max.: <30w
• Lighting Protection: DC ground

Mechanical:

• Dimension: 380x380x18 mm
• Antenna Weight (G.W): 1.5kg
• Connector: 2x SMA/F
• Radome / Color : ABS, UV Resistant / Light Gray

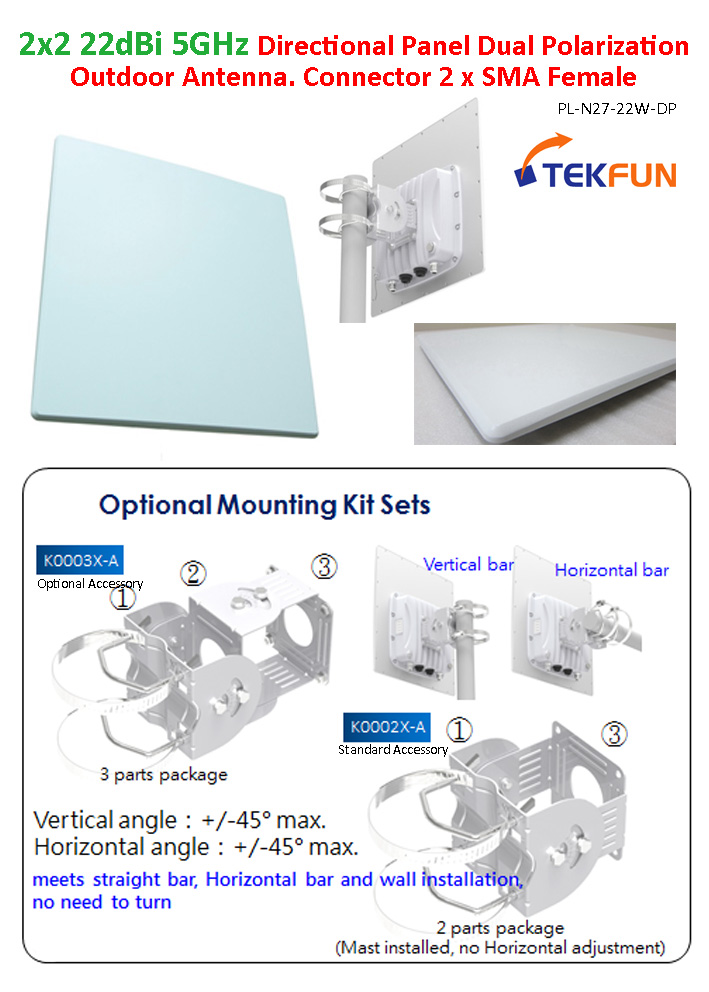

• Mounting: Pole / Wall ; Adjustable V: +/-45deg, H: +/-45deg (Options)
• Operating Temperature : -40℃~65℃
• IP Rating: IP67
• Wind Load (Survival): 200km/h

Mounting:

• Pole Mount

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
