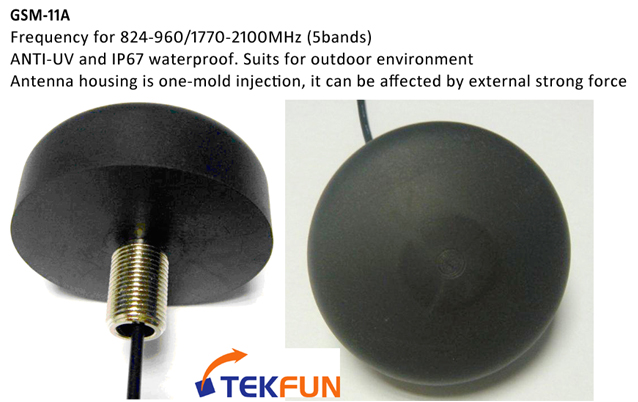

"Anti-shock/crush" Hockey Puck Screw Mount antenna for 3G/GSM, 4G LTE, 433/868MHz, CDMA or WiFi

"Anti-shock/crush" Hockey Puck Screw Mount antenna for 3G/GSM, 4G LTE, 433/868MHz, CDMA or WiFi

Availability： In stock

Model number： SM-GSM11

Part no.

Size (mm)

Frequency

GSM-11A

54.4x24.6

3G/GSM – 824-960/1710-2170MHz

4G-11A

4G/LTE – 800-960/1710-2170/2500-2700MHz

DI-11A

433/868MHz

CDMA-11A

CDMA – 850/1900MHz Dual Band

WIFI-11A

WiFi – 2.4GHz

GPS-11A

GPS Active Antenna



Features

  • Strongest Puk antenna can be affected by external stronger force; one-mold injection.
  • Low Profile Puck Antenna
  • Supports GSM/3G , 4G LTE , 433/868MHz or WiFi frequencies
  • Fully Waterproof when mounted - IP67 waterpfoof
  • For indoor or outdoor use - UV resistant
  • Groundplane Independent
  • SMA-male connector (optional)
Inquiry
Quantity
    Share

    Electrical:

    • Type: Screw Mount【Puck】
    • Frequency: available in 6 models
      GSM-11A:  3G/GSM – 824-960/1710-2170MHz
      4G-11A:  4G/LTE – 800-960/1710-2170/2500-2700MHz
      DI-11A:  433/868MHz
      CDMA-11A:  CDMA – 850/1900MHz Dual Band
      WIFI-11A:  WiFi – 2.4GHz
      GPS-11A:  GPS Active Antenna
    • VSWR: ≤2.0
    • Impedance: 50ohms
    • Gain: 0-3dBi
    • Radiation: Omni
    • Electrical wave: 1/2
    • Polarization: Vertical
    • Max Power: 10W

    Mechanical:

    • Antenna Size: 54.7 x 23.3mm
    • Operating temp.: -30 to +70 degree
    • Storage temp.: -35 to +75 degree

    Mounting

    • Screw Mount

    Pigtail Cable and connector:

    • RG174/u or RG174/u-ds low loss cable - 3meter (OEM length is welcome)
    • Connector: SMA, MCX, MMCX, BNC, FME, SMB, CRC9, TS9 and TNC...etc
    • Or cutting open end

    Made in Taiwan

    OEM and ODM orders are welcome

    Compliant with RoHS Directive
