M01-S2: 2.4GHz Stubby Rubber Antenna with SMA Male Straight or R/A (standard or RP type)

M01-S2: 2.4GHz Stubby Rubber Antenna with SMA Male Straight or R/A (standard or RP type)

Availability： In stock

Model number： E248

Part no.

Standard SMA Male

Reverse polarity SMA Male

Straight

M01-SS2

M01-SSR2

R/A

M01-RS2

M01-RSR2



Inquiry
Quantity
    Share

    Electrical:

    • Frequency: 2.4~2.5GHz
    • Antenna type: monopole
    • VSWR: ≤2.0
    • Impedance: 50ohms
    • Gain: 0dBi
    • Radiation: omni
    • Electrical wave: 5/8
    • Polarization: Vertical
    • Max Power: 1W

    Mechanical:

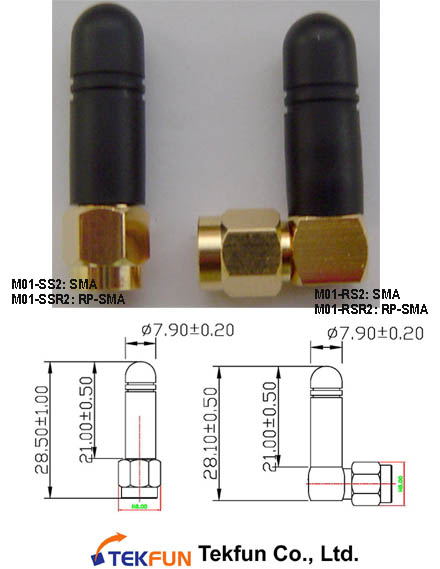

    • Antenna length: 28.5mm for straight; 28.1mm for R/A
    • Operating temp.: -25 to +70 degree
    • Storage temp.: -35 to +70 degree
    • Materials: TPU
    • Color: Black

    Mounting:

    • SMA Male Connector (Standard or RP)

    Made in Taiwan

    OEM and ODM orders are welcome

    Compliant with RoHS Directive
