F07-SS-A1: 5dBi 2.4/5GHz Dual Bands Wi-Fi Straight Rubber antenna with SMA connector, UV resistant

F07-SS-A1: 5dBi 2.4/5GHz Dual Bands Wi-Fi Straight Rubber antenna with SMA connector, UV resistant

Availability： In stock

Model number： E351

Part no.

Standard SMA male

Reverse polarity SMA Male

2.4GHz

M07-SS-A1

M07-SSR-A1

2.4/5GHz

F07-SS-A1

F07-SSR-A1



Inquiry
Quantity
    Share

    Electrical:

    • Type: Dipole antenna
    • Frequency: 2.4~2.5 / 5.15~5.85 GHz
    • VSWR: ≤2.0
    • Impedance: 50ohms
    • Gain: 3dBi for 2.4GHz; 5dBi for 5GHz
    • Radiation: omni
    • Electrical Wave: 1/4
    • Polarization: Vertical
    • Max Power: 1W

    Mechanical:

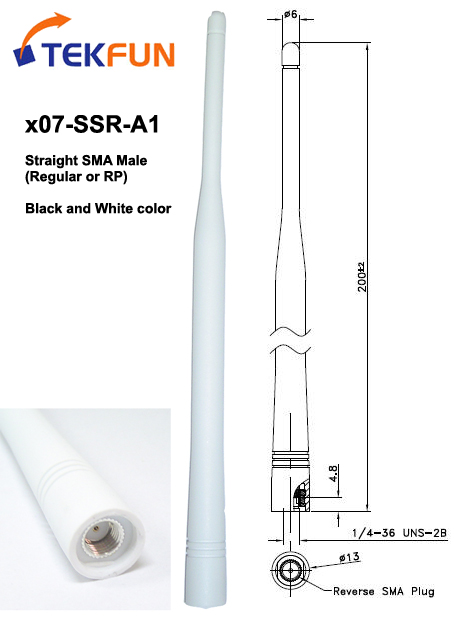

    • Antenna length: 200mm
    • Operating temp.: -40 to +65 degree
    • Storage temp.: -40 to +75 degree
    • Materials: TPEE (Antenna Cover); Brass (Connector)
    • Color: Black and White

    Mounting:

    • SMA Male Connector (R/A and Straight). In-Side type

    Made in Taiwan

    OEM and ODM orders are welcome

    Compliant with RoHS Directive
