Tekfun - GPS-09MA

Availability： In stock

Model number： E19

Part no.	Size(mm)	Frequency
GPS-09MA	79 x 58 x 13	GPS Band 1575.42MHz

Inquiry

Quantity

4Antenna Unit (random connectors and cable ¡V refer to the attached drawing)

4Dimension :79d x 58h x 13mm

4Mount:13mm treaded (1/2inch)

4Radome Color: White

4Temperature:-40 to +85 degree

4Humidity:40% to 95% RH

4Connector¡]GPS or GSM¡^Options: MMCX , MCX , SMA , BNC , SMB ¡Ketc

4Cable: RG-1742~5meter

4Cable Color: Black

4All value are defined at 25+/-15 degree ,65+/-20 % RH unless otherwise noted.

4Antenna characteristics are measured with 70x70 mm ground plane in an anechoic chamber.

A.GPS ANTENNA

Characteristics	Specification
Center Frequency	1575.42+/-1.023 MHz
Bandwidth	10 MHz @ -3dB point
Polarization	R.H.C.P
Axial Ratio	2.0 dB max
Over-Current	Thermal Over-current shutdown >+150degreeC
RF noise protection	RF protection(10watt), nano-second Spark-Gap
Coax Cable	RG-174U double shielded 5m, Low Loss 0.7dB/m

B.LNA

Characteristics	Specification
Center Frequency	1575.42+/-1.023 MHz
Over-all Gain	28dB (typical including 4dB cable loss & Filters)
Over-all NF
Output V.S.W.R	1.5 dB max
LNA Characteristic	K=>1 Un-conditionally Stable
Voltage	3.0~12V
Current	11~13mA+/-2

C.GSM ANTENNA

Characteristics	Specification
Frequency	GSM: 900~1800 MHZ
VSWR	1.5MAX
IMPEDENCE	50ohms
Polarization	R.H.C.P
Gain	3dBi
Power handling capacity	40W
Cable and connector	3m RG-174 with FME (F) or SMA (M) connector

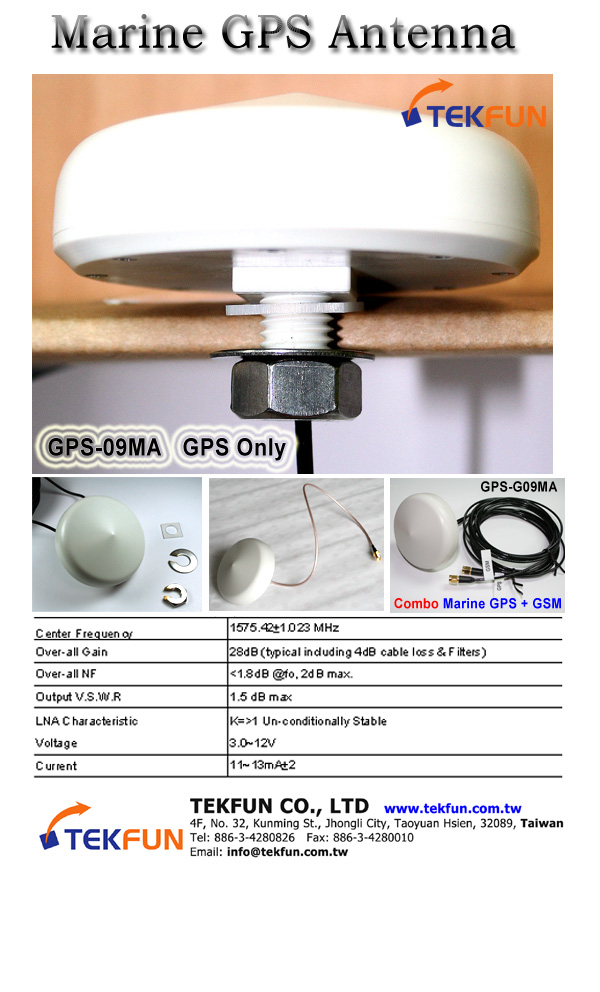

GPS Marine Active antenna with screw mount. 3~ 6V 28dB. 10W RF protection and 2 stages active LNA with Low Noise Amplifier
