Electrical:

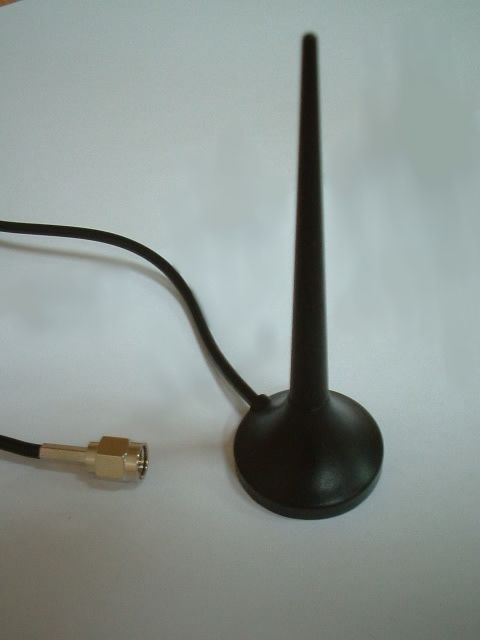

• Type: Magnetic mount whip antenna

• Frequency:
  MB-07F-LTE: 800-960/1710-2600MHz  (max. cable length 2meter)
  MB-07F-3G: 800-960/1710-2170MHz  (max. cable length 5meter)
• VSWR: ≤2.0
• Impedance: 50ohms
• Gain: 3dBi
• Radiation: Omni-directional
• Polarization: Vertical
• Max Power: 10W

Mechanical:

• Antenna Size: base 29mm, height: 88.7mm
• Operating temp.: -30 to +70 degree
• Storage temp.: -35 to +75 degree

Mounting

• Magnetic Base OD29mm
• Metal Ground Plane to get better gain

Pigtail Cable and connector:

• RG174/u (OEM length is welcome)
• Connector: SMA, MCX, MMCX, BNC, FME, SMB, CRC9, TS9 and TNC...etc
• Or cutting open end

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
