Electrical:

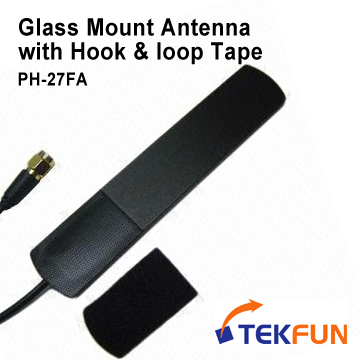

• Type: 【VALCRO】mount patch antenna
• Frequency: 690-960/1710-2170/2400-2700MHz
• VSWR: ≤2.0
• Impedance: 50ohms
• Gain: 3dBi
• Radiation: Directional
• Electrical wave: 1/4
• Polarization: Linear
• Max Power: 10W

Mechanical:

• Antenna Size: 105.5 x 22.2mm
• Operating temp.: -30 to +70 degree
• Storage temp.: -35 to +75 degree

Mounting

• Valcro

Pigtail Cable and connector:

• RG174 3meter (OEM length is welcome)
• Connector: SMA, MCX, MMCX, BNC, FME, SMB, CRC9, TS9 and TNC...etc
• Or cutting open end

Made in Taiwan

OEM and ODM orders are welcome

Compliant with RoHS Directive
